Star Wars Home Edition Plus

Star Wars Home Edition Plus

Bring Home the Fun!

A Pinball Adventure of a Lifetime

Experience Star Wars™ like never before in this pinball machine packed with features that provide players with an irresistible game experience including select speech and footage from the original Star Wars™ trilogy, color-changing playfield inserts, a custom sculpted Death Star, and a custom sculpted and interactive TIE fighter! Easy to set up, reliable, and FUN for the entire family!

Set Up Your New Game!

What You'll Need

  1. Something to cut the box, ideally a box cutter.
  2. A ⅝ inch open end wrench.
  3. A cloth or paper towel.
  4. (Optional) For an easier installation: torpedo level and ⅝ inch socket & ratchet.

Chapter 1: Unbox

  1. Cut the straps on the box.
  2. With assistance, slide the box off the pallet.
  3. Open the top of the box and angle the two narrow boxes containing the pinball legs to the back of the game.
  4. Cut along the dotted lines on the “TRUCK THIS SIDE ONLY” side of the box.
  5. Carefully, slide the game out of the box.

Chapter 2: Install the Legs

  1. With a ⅝ inch open end wrench (or socket & ratchet) to remove the leg bolts and washers from the front of the cabinet.
  2. Attach the front legs using the bolts and washers. Carefully place the game on the front legs.
  3. On the back of the game, remove the leg bolts and washers.
  4. With assistance, lift the back of the cabinet and install the back legs.

Chapter 3: Add the Pinballs & Plumb Bob Tilt

  1. Cut the strap that secures the game.
  2. Cut the zip tie and use the keys to open the coin door.
  3. Remove the pinballs from the bag.
  4. Wipe off the pinballs with a cloth and drop them into the marked hole at the back of the cabinet.
  5. Open coin door, remove wrapping and adjust the Plumb Bob Tilt (see the video for details).

Chapter 4: Raise the Backbox

  1. Remove the bolts and washers from the bag.
  2. Carefully raise the backbox to an upright position and immediately install the backbox bolts and washers.

Fun Fact!

By design, your game is intended to be level left to right, and the playfield should be set at an angle between 6° and 7°. Note: Playfield angle is not the same as the angle of the glass.

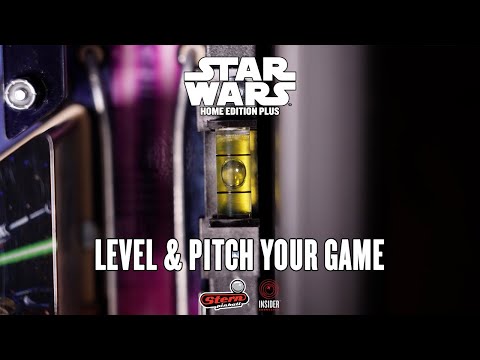

Chapter 5: Level & Pitch the Game

  1. Begin by setting both front leg levelers to their lowest position, ensuring the hex nut touches both the leg and the footpad of the leveler.
  2. Locate the liquid level on the game, positioned in the lower right hand corner of the playfield (close to where the ball is launched).
  3. Next, adjust the rear leg levelers until the air bubble rests between the two black lines on the liquid level.

Chapter 6: Power Up

  1. Plug the power cord into the back of the backbox and into your outlet on the wall.
  2. Turn on the game with the power switch located under the right hand side of the backbox.

Chapter 7: Digital Set Up

  1. Download the app and create an account.
  2. Enter the Machine Registration option through the app and follow the instructions to connect your game.
Download the Manual

CONTACT US

For any technical support issues or questions, please contact us at service@sternpinball.com or 1-800-KICKERS.  Please provide your game’s serial number.  Your game’s serial number is located on two places: the inner left cabinet wall, next to the tilt switch and the back of game, below the back box assembly.

WARRANTY INFO

END USER LICENSE AGREEMENT (EULA)

STERN PINBALL

END USER LICENSE AGREEMENT

This limited software license Agreement (“Agreement”) applies to your use of Stern Pinball Software pre-installed on a Stern Pinball Machine and any Authorized Updates made available to you. BY USING YOUR STERN PINBALL MACHINE, YOU AGREE TO THE TERMS OF THIS AGREEMENT. If you do not agree to the terms of this Agreement, do not use your Stern Pinball Machine or any Authorized Updates. Please read this entire Agreement, which governs your use of the Stern Pinball Machine, Stern Pinball Software and all Authorized Updates. ADULT CONSENT TO ENTER INTO THIS AGREEMENT, YOU MUST BE AN ADULT OF THE LEGAL AGE OF MAJORITY IN YOUR COUNTRY OF RESIDENCE. YOU ARE LEGALLY AND FINANCIALLY RESPONSIBLE FOR ALL ACTIONS USING YOUR STERN PINBALL MACHINE AND SOFTWARE AND ACCESSING OR USING ANY ONLINE GAMING PLATFORM, INCLUDING THE ACTIONS OF ANYONE YOU ALLOW TO USE AND ACCESS TO YOUR MACHINE AND ANY ASSOCIATED ACCOUNT. YOU AFFIRM THAT YOU HAVE REACHED THE LEGAL AGE OF MAJORITY, UNDERSTAND AND ACCEPT THIS AGREEMENT. IF YOU ARE UNDER THE LEGAL AGE OF MAJORITY, YOUR PARENT OR LEGAL GUARDIAN MUST CONSENT TO THIS AGREEMENT. DEFINITIONS.
  1. “Stern Pinball Machine” means a Stern Pinball arcade game machine.
  2. “Stern Pinball Software” means software (including but not limited to firmware) pre-installed in the Stern Pinball Machine, including all Authorized Content and any Authorized Updates that Stern Pinball may make available to You from time to time.
  3. “Authorized Content” means all Stern Pinball and third-party owned software and content incorporated into or used with the Stern Pinball Software or otherwise embedded in or utilized by a Stern Pinball Machine, including but not limited to graphics, images, music, vocals and voices.
  4. “Authorized Update” means an update to the Stern Pinball Software distributed by Stern Pinball or otherwise made available by Stern Pinball, including for download on its web site.
  5. “Unauthorized Content” means all content, including but not limited to limited to graphics, images, music, vocals and voices, that does not comprise Authorized Content or an Authorized Update.
  6. “Unauthorized Software” means any software (including but not limited to firmware) not pre-installed by Stern Pinball on a Stern Pinball Machine or that does not comprise Authorized Content or Authorized Update.
  7. “You” means the purchaser or current owner of a Stern Pinball Machine.
LICENSE. Stern Pinball hereby grants You a nonexclusive, non-transferable, limited, and revocable right and license to use one copy of the Stern Pinball Software and Authorized Content and any Authorized Update solely for your personal use, or that of your patrons and customers if you are a commercial entity, for playing a single Stern Pinball Machine. The Stern Pinball Software, Authorized Content and Authorized Updates are licensed, not sold, to You, and no ownership rights are transferred by this Agreement. The Stern Pinball Software Authorized Content and Authorized Updates are protected by U.S. and international copyright. All rights not explicitly granted to you in this Agreement are reserved by Stern Pinball.
  1. As a condition to this Stern Pinball Software license, You agree that:
    1. You will not copy, reproduce, alter, replace, distribute, reverse engineer, decompile, disassemble, display, perform, create derivative works based on, or otherwise modify the Stern Pinball hardware or Stern Pinball Software or any Authorized Update, in whole or in part; and will not commercially exploit any of the foregoing.
    2. You will not use or install any Unauthorized Content or Unauthorized Software. Use of Unauthorized Content or Unauthorized Software may result in your Stern Pinball Machine ceasing to work permanently and/or losing access to Stern Pinball’s online game network, either immediately or after a later installed Authorized Update.
    3. You will not create, develop, distribute or assist anyone else in creating, developing or distributing any Unauthorized Content or Unauthorized Software intended for use with a Stern Pinball Machine, whether to add to or modify the gameplay, any audio content (whether music, sound or voice), or any video content of any Stern Pinball Machine, or to gain advantage in any online or other game modes, or otherwise.
    4. You will not share any Stern Pinball Software, Authorized Content or Authorized Update with any other person or company and will not permit anyone else to access or copy any Stern Pinball Software or Authorized Content or Authorized Update installed on your Machine for any purpose.
    5. In view of the rights held by third-party owners of Authorized Content (e.g., music and video clips), Stern does not have the legal authority to give permission to stream the gameplay of Stern Pinball Machines.
    6. You will not attempt to defeat or circumvent any anti-piracy, security, and/or technical measures to control access to the Stern Pinball Software, features, functions or content, prevent unauthorized use, or otherwise prevent anyone from exceeding the limited license rights granted under this Agreement, “Security Measures”. Attempting to defeat or circumvent any Security Measure may result in your Stern Pinball Machine ceasing to work permanently either immediately or after a later installed Authorized Update.
    7. Stern Pinball may update the Stern Pinball Software from time to time without further notice to You, for example, to update any anti-piracy, security, and technical measure.
PRIVACY POLICY Your use of the Stern Pinball Machine, Stern Pinball Software and any Authorized Updates are subject to Stern Pinball’s Privacy Policy which can be found at https://sternpinball.com/privacy-policy/   WARRANTY EXCEPT AS PROVIDED HEREIN, THE STERN PINBALL SOFTWARE, AUTHORIZED CONTENT AND AUTHORIZED UPDATES ARE PROVIDED "AS IS" AND, TO THE MAXIMUM EXTENT ALLOWABLE UNDER LAW, STERN PINBALL DISCLAIMS ALL WARRANTIES OF ANY KIND, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. WITHOUT LIMITING THE FOREGOING, STERN PINBALL DOES NOT WARRANT THAT OPERATION OF THE STERN PINBALL MACHINE OR ANY ONLINE OR CONNECTED GAME NETWORK WILL BE UNINTERRUPTED OR ERROR-FREE. EXCLUSION OF CERTAIN DAMAGES STERN PINBALL IS NOT RESPONSIBLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES; ANY LOSS OF DATA, PRIVACY, CONFIDENTIALITY, OR PROFITS; OR ANY INABILITY TO USE THE STERN PINBALL MACHINE, STERN PINBALL SOFTWARE OR ANY AUTHORIZED UPDATE. THESE EXCLUSIONS APPLY EVEN IF STERN PINBALL HAS BEEN ADVISED OF THE POSSIBILITY OF THESE DAMAGES, AND EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. Some countries do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to You. These terms apply to the maximum extent permitted by law and unless prohibited by law. These terms do not change your rights under the laws of your country if those laws do not permit that change. TERRITORY AND CHOICE OF LAW This License is valid only in the country in which you purchased your Stern Pinball Machine. This License will be subject to and construed in accordance with the laws of the State of Illinois, U.S.A., regardless of conflict of laws principles. You agree to submit to the exclusive jurisdiction of the state and federal courts in Cook County, Illinois, U.S.A. for the resolution of any dispute regarding this Agreement or the subject matter of this Agreement and to waive any jurisdictional, venue, or inconvenient forum objections to such courts. This Agreement may be updated by Stern Pinball from time to time with the current version posted at www.sternpinball.com/EULA. Your continued use of the Stern Pinball Software an Authorized Update after an updated Agreement has been posted constitutes your acceptance of all of its terms.
DOWNLOAD EULA (.PDF)
DOWNLOAD GAME CODE
